Theoretical and experimental investigation on natural frequency-based crack detection using a roving mass with rotary inertia

Experiment design:

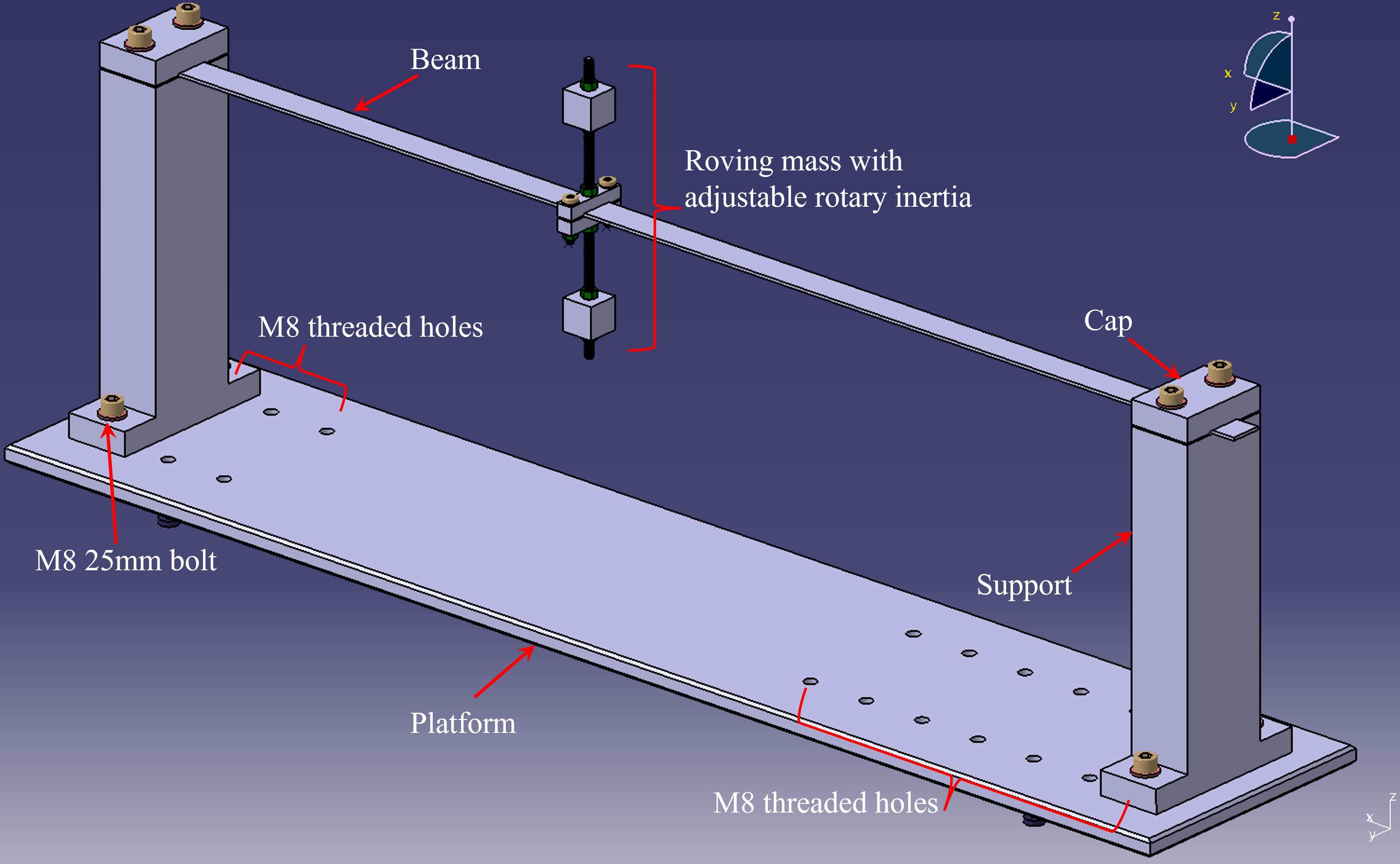

Roving mass with adjustable rotary inertia.

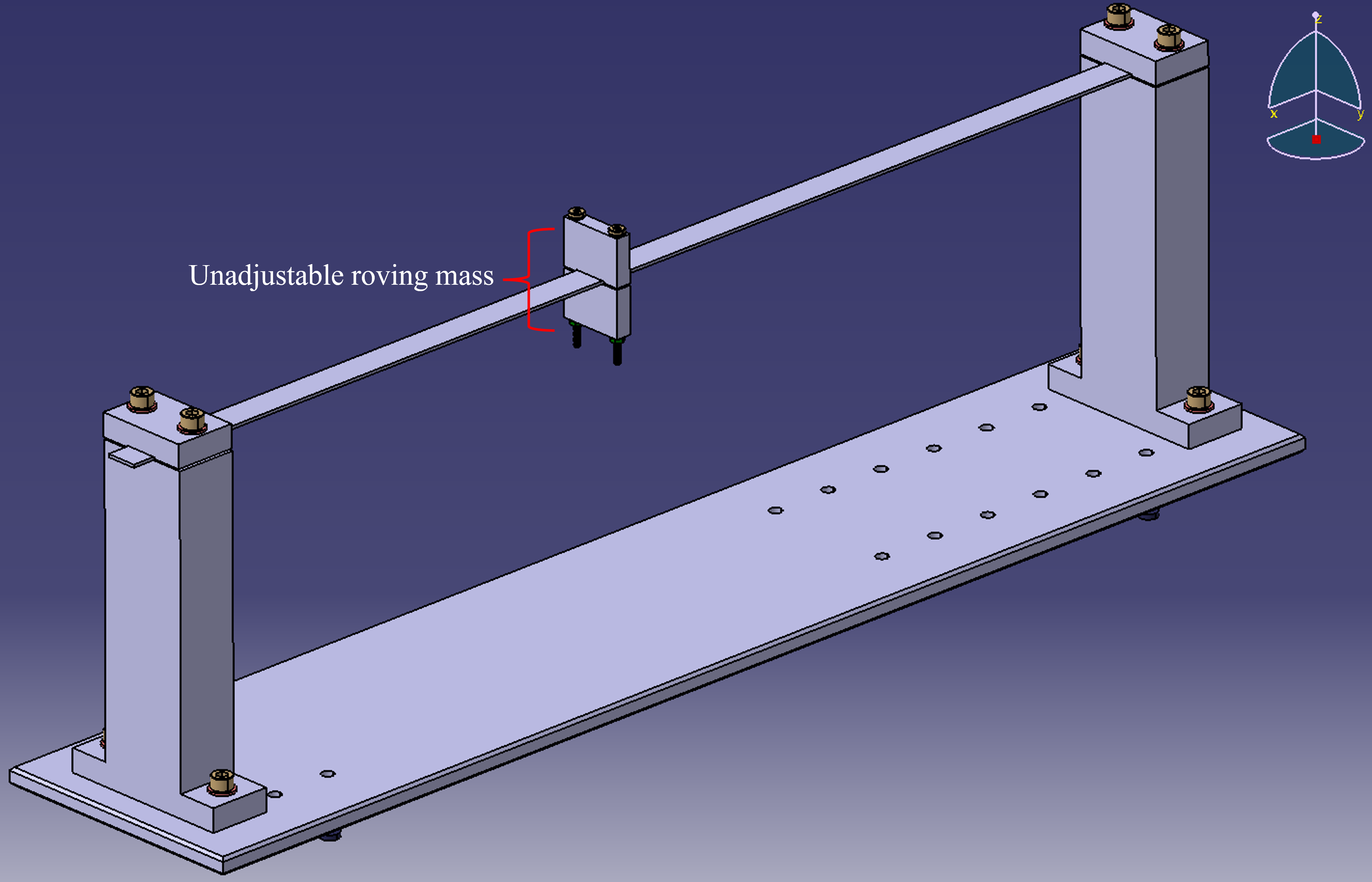

Unadjustable roving mass.

The experiment set-up for the impact hammer test:

This slideshow requires JavaScript.

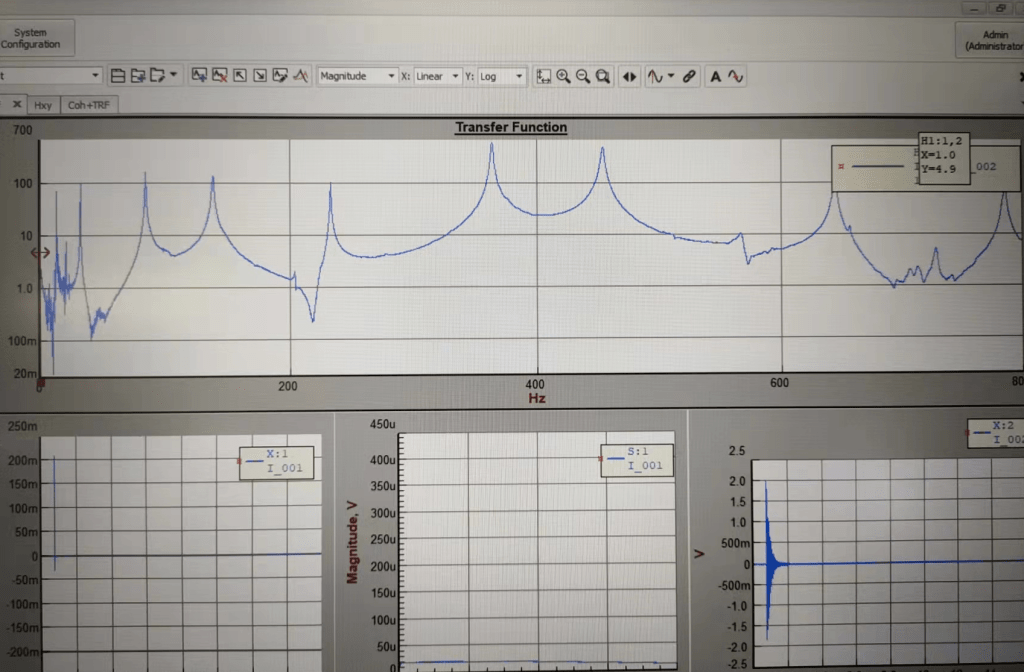

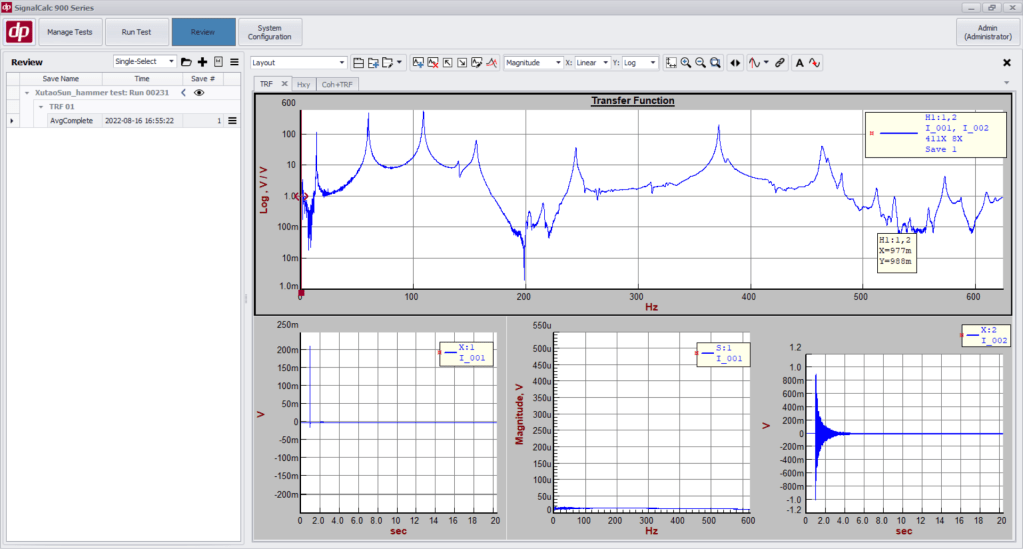

Typical curves of the transfer function:

Data processing:

FRF magnitude and phase vs. frequency

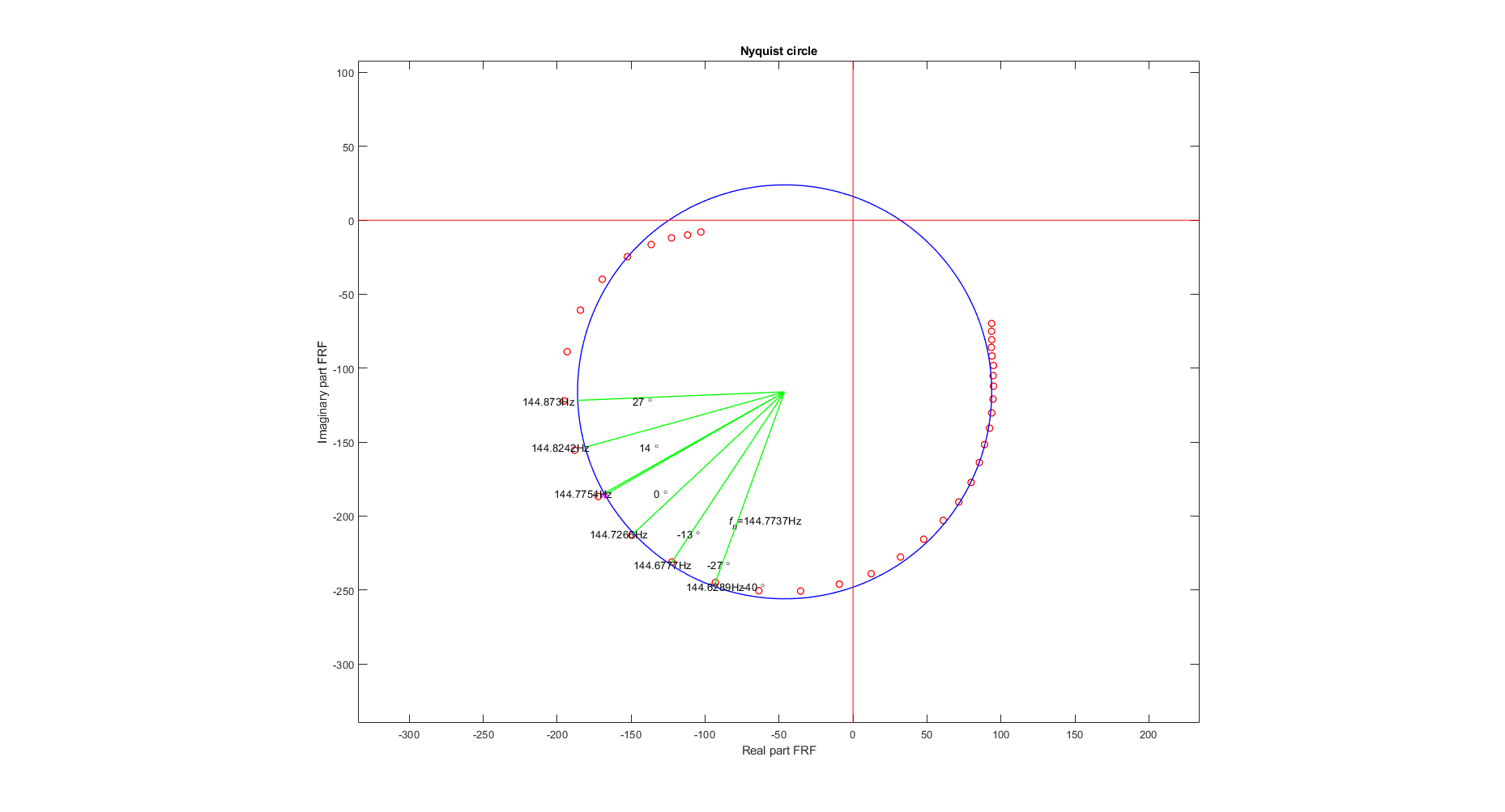

Modal circle for extracting natural frequency and loss factor

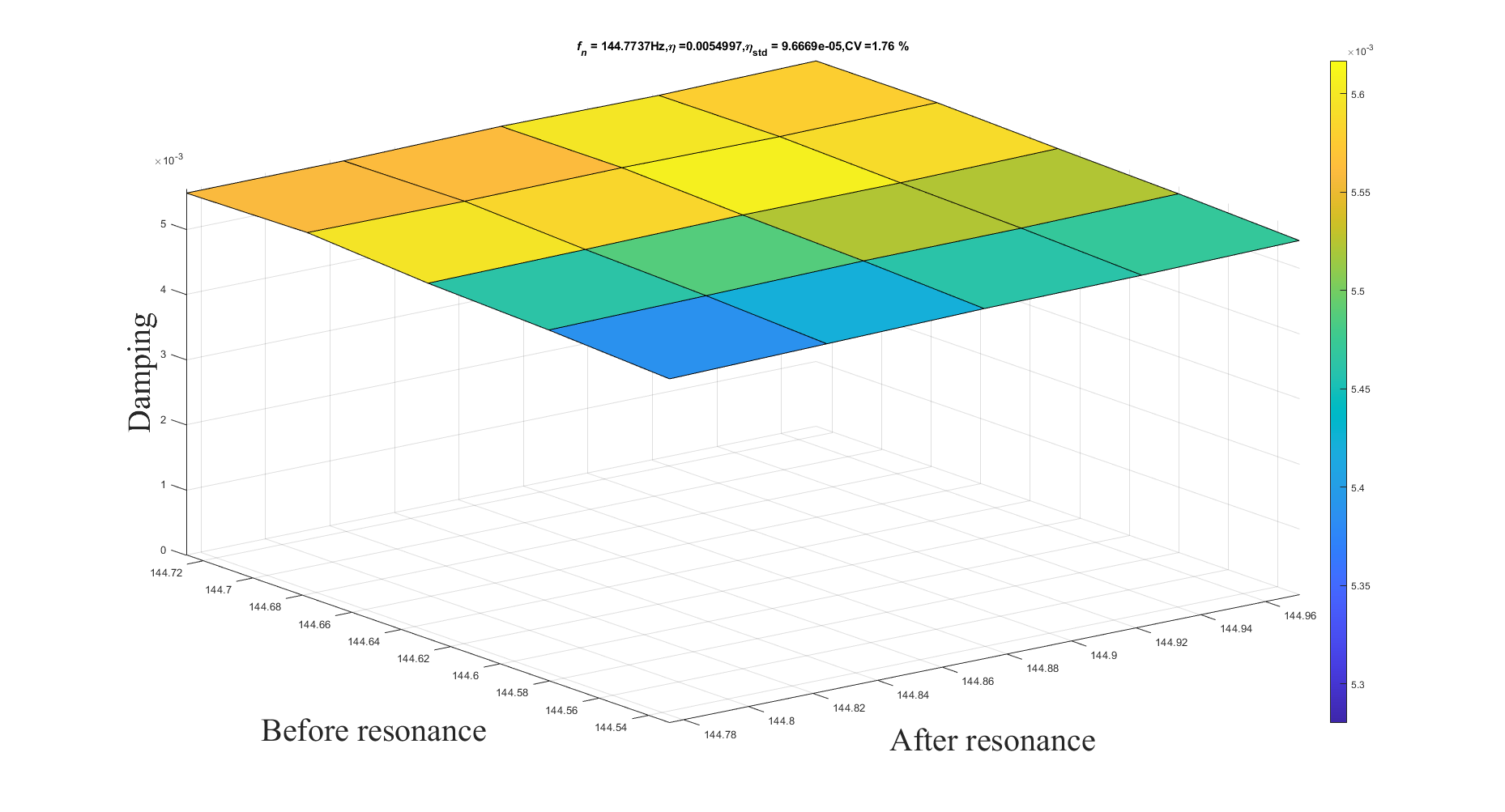

Damping “carpet” plot

Circle-fit method

Modal testing: theory, practice and application (D. J. Ewins)
